RF Serial UART Wireless Module

입력전압 :3.3 ~ 5.0VDC

전송모드 :: 1 : N , N : 1 , N : N 지원

주파수: 433MHz

가용범위 : 200M 이하

출력 : 아날로그 , 디지털 출력

동작온도 : -40 ~ 85℃

무게 : 9g

사이즈 : 27.8 X 14.4 X 4(mm)

Module Introduction

HC-11 wireless communication frequency band is 434M.

Multiple types of serial port transparent transmission modes have respective features, and the mode is changed by command. (V1.8)

User needn't program the modules, and four modes are only responsible for receiving and sending serial port data, and are convenient to use.

Low current consumption; the idle current is 80μA, 3.5mA or 22mA, depending on the selected mode.

The number of bytes sent to serial port of module unlimited to one time.

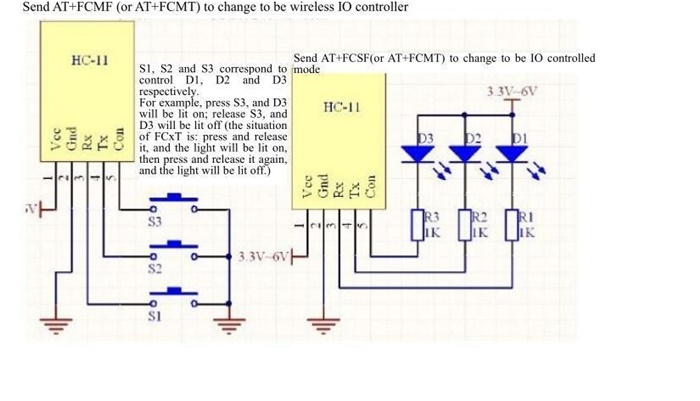

All functions and parameters are changed by command, and can be saved in case of power failure.
